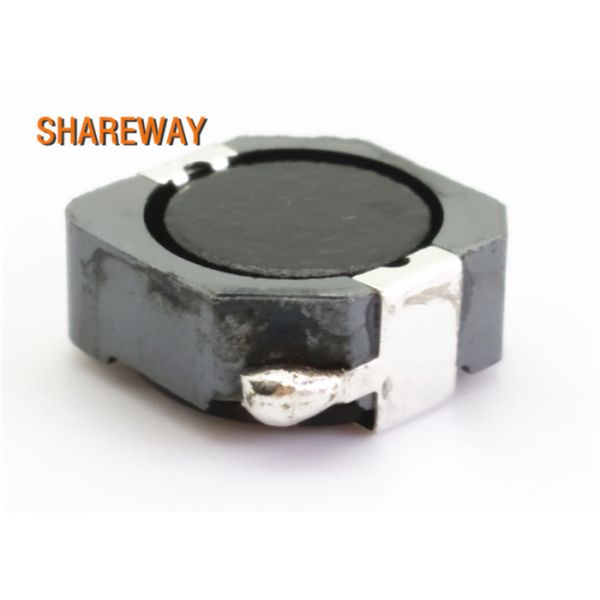

Name: NR Series SMD Power Inductor Shielded Molding Buzzer NRV2010T1R5MGF For Driver
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : NRV2010T1R5MGF

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : NRV2010T1R5MGF Shielded Molding Buzzer Power Inductor NR series

Usage : Driver

Series : NR series

Inductor : Molding Buzzer Power Inductor

RoHS : Yes

Saturation Current (max) : 1.35 A

Contact Now

NRV2010T1R5MGF Shielded Molding Buzzer Power Inductor NR series

Description:

Part number	NRV2010T1R5MGF
Brand	Shareway
Inductance	1.5 uH ± 20 %
Case Size (mm)	2.0x2.0
Rated Current (max)	1.35 A
Saturation Current (max)	1.35 A (⊿L=30%)
Saturation Current (typ)	1.45 A (⊿L=30%)
Temperature Rise Current (max)	1.45 A (⊿T=40℃)
Temperature Rise Current (typ)	1.65 A (⊿T=40℃)
DC Resistance (max)	0.12 Ω
DC Resistance (typ)	0.1 Ω
LQ Measuring Frequency	100 kHz
Operating Temp. Range	-25 to +120 ℃ (Including-self-generated heat)
Temperature characteristic (Inductance change)	± 20 %
RoHS Compliance (10 subst.)	Yes
REACH Compliance (201 subst.)	Yes
Halogen Free	Yes
Soldering	Reflow

Dimensions:
